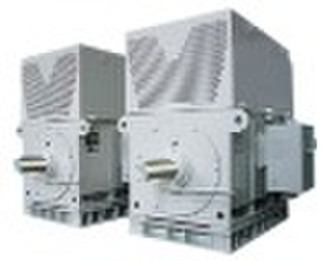

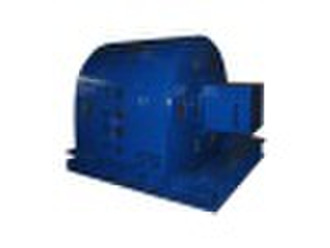

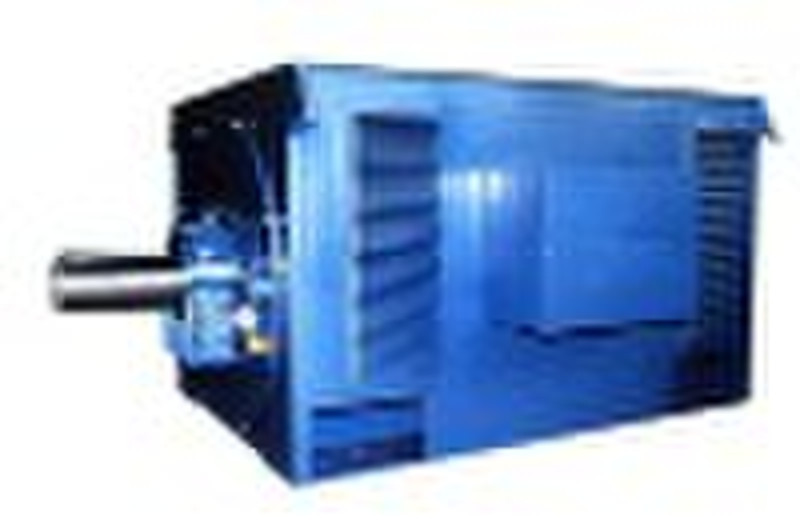

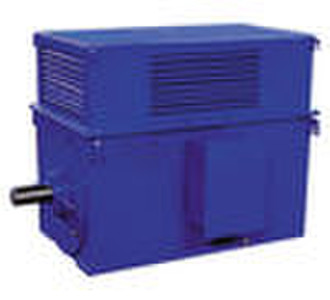

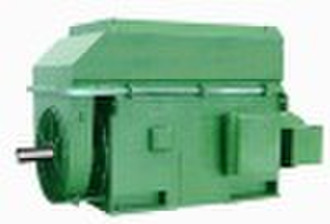

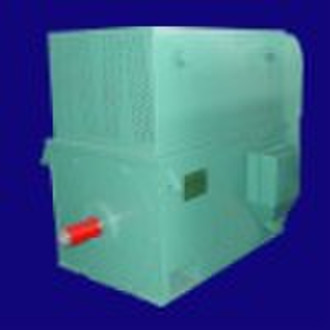

Y,YR,YKK,YRKK Squirrel Cage and Slip Ring AC Induc

Y, YR series are the basic series, Protection degreeare IP23, protective cover and its cover plate removed and the base at the top and side of the roof to install a different cover and cover can be formed of different protective methods and cooling method motors. The use of sliding-type stator fitted the structure of external pressure. Stator using material of insulation F, at the end there is a reliable fixed and banding, in the manufacturing process after several turn-to-turn impulse voltage test and the voltage-to-ground tests, and using vacuum pressure impregnation process solvent-free paint (VPI) treatment. Therefore, the electrical equipments have very good insulation performance and reliable mechanical strength, and moisture-proof ability. Squirrel-cage rotor use reliable and advanced welding technology, and by the bed fastening process. Wound Rotor using the materials of insulation degree F and using vacuum pressure impregnation materials and solvent-free process (VPI) treatment, welding rotor head and wiring all be insulated to ensure that there is reliable. there are two type of :Bearings rolling bearings and sliding bearings .this is according to motor size and speed of moving.the basic forms of protection degree is IP44, if motor have higher protection degree, the bearings also have higher protection degree. the protection degree for the main outlet Box is IP54 , it is usually at the right side (viewing from the shaft extension side ). but it can also be be installed at the left side )as the requirements of orders. there are terminal to the ground both inside and outside of the main outlet box.voltage: 10kv,6kv,3kv,380v power:250 10000kw pole:4,6,8,10,12,16,20,24 IP23 46,insul:B F Comparison of different series High Voltage motors No.Squirrel-cage motorYYKKYKSY2Slip-ring motorYRYRKKYRKS/1StructureBox-type construction, made up of steel plates welded with each otherCompact struction2Cooling methodIC01 or (IC11, IC21, IC31)IC611 or IC616IC81WIC4113Natural ventilation, with top mounted protection coverWith top mounted air-air coolerWith top mounted air-water cooler4Protection typeIP23IP44 or IP54IP44 or IP54IP545InsulationF6Mounting arrangementIMB37Voltage available3kv, 3.3kv; 6kv, 6.6kv; 10kv, 11kv8Frequency available50Hz , 60Hz Application These motors can be used to drive different general machines such as compressor, water pump, crusher,cement ,steel mill ,cutting machine, transportation equipment and other facilities, it is widely used in the power plant, mine, machine industry, building material industry, petroleum and chemical industry, etc.
